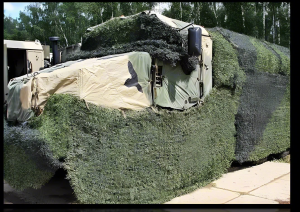

Anti-radar reconnaissance camouflage net is matched with the background in the visible light, near-infrared wavelength spectral reflection characteristics and radar wavelength scattering characteristics. It has the ability of anti-optical reconnaissance and anti-radar reconnaissance, and it can be widely used in the anti-optical and radar reconnaissance camouflage of various equipment. In addition, it can also be used in the camouflage of engineering and facilities. The product has passed ISO9001:2015 quality management system certification.
Structure: reinforced skeleton mesh + cut flower decorative piece
Camouflage Type: mainly including woodland type camouflage, desert type camouflage, snow type camouflage, also can be customized
Application Scenarios: It is mainly used for radar band target feature signal control of main battle tanks, armored vehicles, self-propelled artillery equipment and other ground weaponry to counter the detection of millimeter-wave radar and the strike of centimeter-wave detection radar
Technical Parameters
◆ Weight
≤500g/m²
◆ Physical & Mechanical Properties
Rupture strength: Warp ≥ 500N, Weft ≥ 500N
Tear strength: Warp≥ 50N, Weft≥ 50N
◆ Flame retardant properties
Re-ignition time no more than 10s
◆ Camouflage performance
1) Protection band: 1-18 GHz
2) Radar wave transmittance: the average radar wave transmittance in the normal direction is not more than 50% 3) Bi-directional transmission attenuation Bi-directional transmission attenuation is not less than 4dB in the 1-4GHz band; not less than 4dB in the 4-12GHz band; and not less than 10dB in the 12-18GHz band
◆ Environmental adaptation
The color difference before and after 500h artificial climate aging is less than 3 levels
◆ Life span
1) A storage lifespan is not less than 10 years
2) A cumulative field life span is not less than 5 years
