CAMO-4000

Anti-multiband reconnaissance camouflage with its spectral  reflection, thermal radiation and radar wave scattering characteristics are matched with the background. It is capable of anti-optical, mid- and far-infrared and radar reconnaissance, and can be widely used in anti-optical, mid- and far-infrared and radar reconnaissance camouflage of various equipments, as well as camouflage of engineering and facilities. The product has passed ISO9001:2015 quality management system certification.

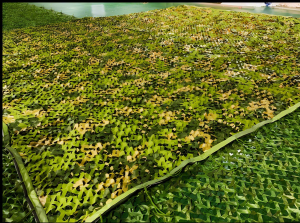

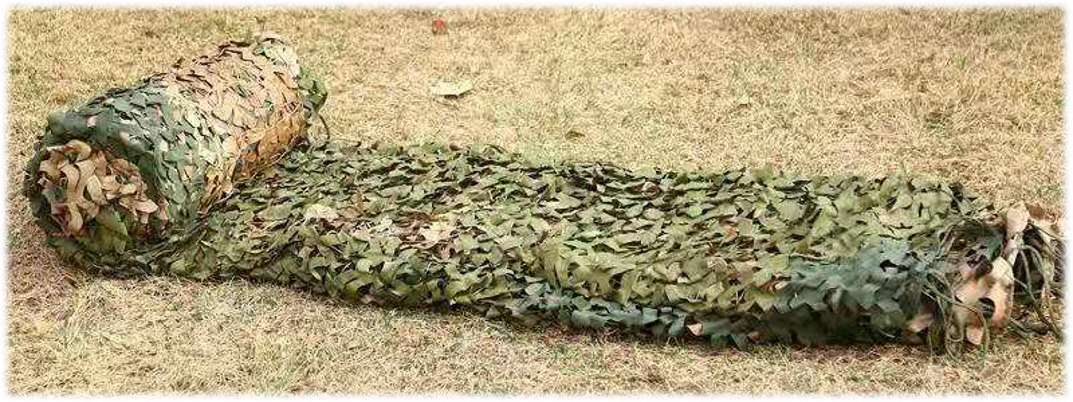

Structure: double-layer composite structure, anti-hooking bottom net + composite cut flower decorative piece

Camouflage Type: mainly including woodland type camouflage, desert type camouflage, snow type camouflage, also can be customized

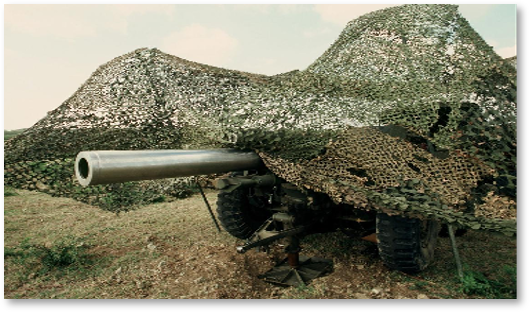

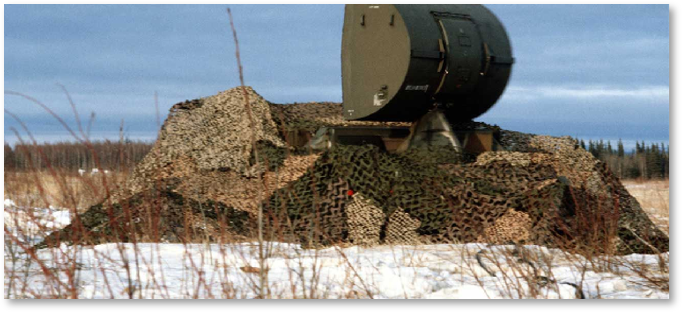

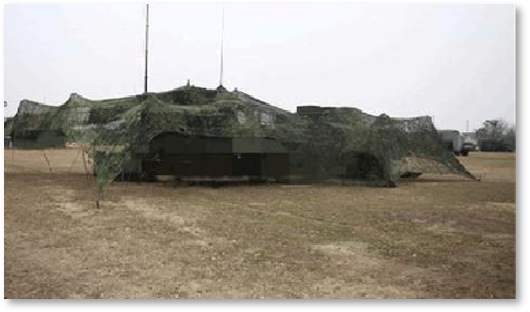

Application Scenarios: Mainly used for artillery, missile launchers and other ground maneuvering equipment and command and protection works, positions and other fixed military facilities target camouflage

Technical Parameters

◆Weight

 ≤500g/m²

◆Physical & Mechanical Properties

Rupture strength: Warp ≥ 500N, Weft ≥ 500N

Tear strength: Warp≥ 50N, Weft≥ 50N

◆Flame retardant properties

Re-ignition time no more than 10s

◆Camouflage performance

1) Protection band: including optical, mid- and far-infrared, and radar bands

2) Fulfill the camouflage protection performance index parameters of anti-optical, mid- and far-infrared, and radar reconnaissance camouflage nets

3) Gloss: each camouflage color 60 ° gloss is not greater than  5 gloss units

4) Coating film emissivity: low emissivity ≤ 0.65, medium emissivity ≤ 0.75, high emissivity ≥ 0.90

5) Radar wave reflection attenuation: (2.6~40GHz) bandwidth  better than -10dB, not less than 90%

◆ Environmental adaptation

The color difference before and after 500h artificial climate aging is less than 3 levels

◆Life span

1) A storage lifespan is not less than 10 years

2) A cumulative field lifespan is not less than 5 years
